Window Guide, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

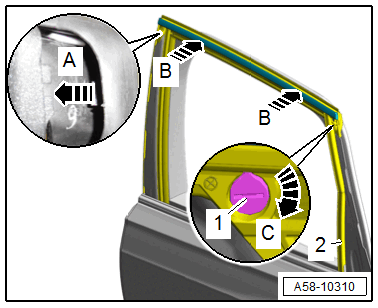

-- Engage the window guide -2- on the front door flange -arrow A-.
-- Starting at the front push the window guide on the door flange -B arrows- and then in the guide of the guide rail.
-- Insert the clip -1- and secure, to do so turn 90° clockwise -arrow C-.
- The tab of the clip points toward the rear.
Further installation is performed in reverse order of the removal.
