Outer Window Shaft Strip, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

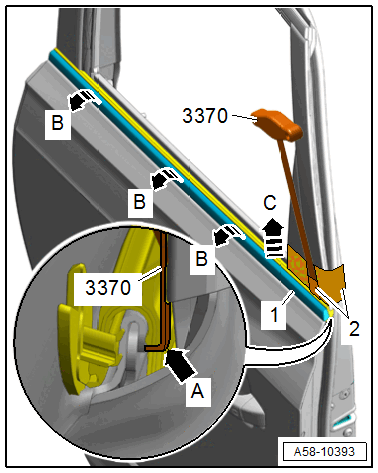

-- Move the door window into the "open" position.
-- To prevent damage, tape off the Backrest Panel Tool:3370 and the C-pillar trim with adhesive tape -2-.
-- Guide the Backrest Panel Tool:3370 from behind in the window shaft strip -arrow A-.
-- Remove the window shaft strip with the Backrest Panel Tool:3370 carefully in the rear area upward from the door flange -arrow C-.
-- Remove the window shaft strip with both hands to the B-pillar from the door flange -B arrows-.
