Outer Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
The lower edge of the window shaft strip can be coated with tire mounting paste for installation.

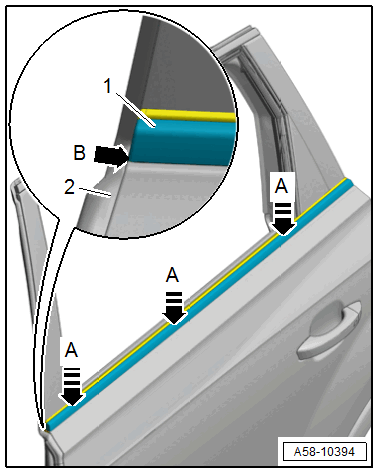

-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and to the C-pillar and place fully on the door flange -A arrows-.
Further installation is performed in reverse order of the removal.
