Overview - Windshield
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

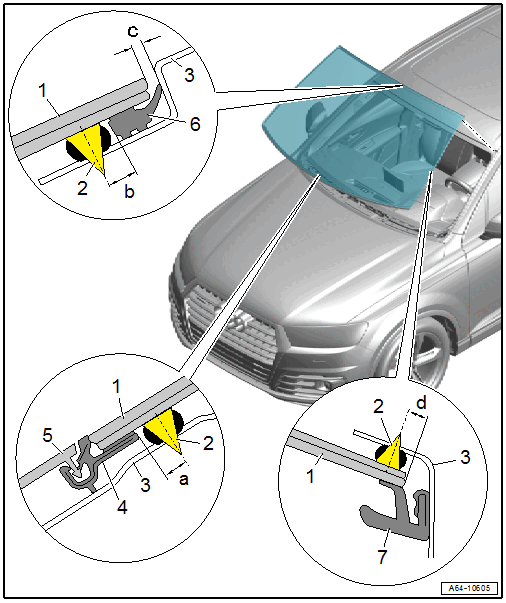

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Windshield
- Distance to roof frame: dimension -c- = 2.5 mm
- Center the side distance to the A-pillars
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 6 mm
- Dimension -b- = 7 mm
- Dimension -d- = 6 mm
- Adhesive bead thickness. Refer to Adhesive application: .
- Roof Frame
- Plenum Chamber Cover Frame
- No replacement part
- With a new window glass remove the protective piping. Refer to Fig 1.
- Plenum Chamber Cover
- Only press into retaining strip after window adhesive minimum curing time is complete (two hours).
- Remove the protective piping before assembling. Refer to Fig 1.
- Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
- Molding
- Must not be damaged in the visible area
- Drip Rail
- Removing and Installing. Refer to DRIP RAIL, REMOVING AND INSTALLING .
Protective Molding, Removing
-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
