Undamaged Side Window, Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .

Special tools and workshop equipment required

Window Cutter:V.A.G 1561 A
Window Cutter - L Blade (2 pc.):V.A.G 1561/22

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- In the window glass cutting area, protect the side panel and roof against paint damage with adhesive tape.

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

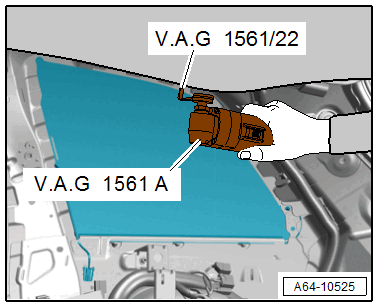

-- Cut through the adhesive bead from the vehicle interior all around the side window using the Window Cutter:V.A.G 1561A and Window Cutter - L Blade (2 pc.):V.A.G 1561/22 . This also cuts through the locating pins on the side window.

Courtesy of AUDI

-- Loosen the trim molding from the side window molding. Refer to TRIM MOLDING, REMOVING AND INSTALLING, SIDE WINDOW .
