Overview - Rear Side Window
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

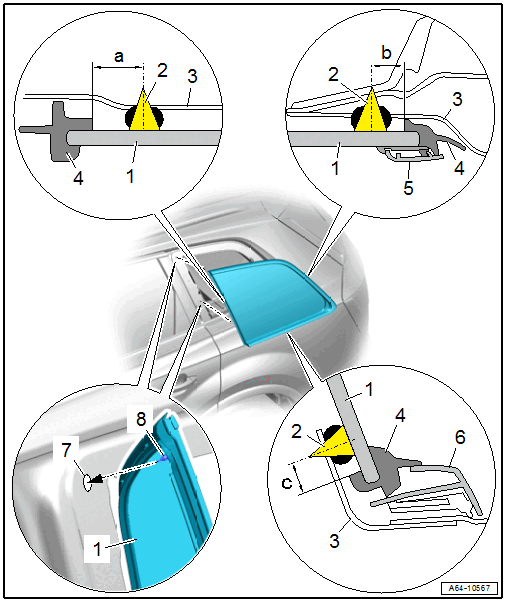

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing push in first with the retainers -item 8-
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 13 mm.
- Dimension -b- = 8 mm
- Dimension -c- = 13 mm
- Adhesive bead thickness. Refer to Adhesive application: .
- Side Panel Window Opening
- Molding
- Must not be damaged in the visible area
- Trim Molding
- Lower Trim Molding
- Securing Hole
- Retainer
- No replacement part
- Is cut through when removing the window.
