Front Passenger Side Rear Ionizer -J1108-, EMOVING AND INSTALLING, Q7 BEFORE PRODUCT IMPROVEMENT: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner".Refer to Owner's Manual.
Continuation for all vehicles
-- Move the front passenger seat as far forward as possible.
-- Switch off the ignition.
-- Remove the upper trim of the right B-pillar. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

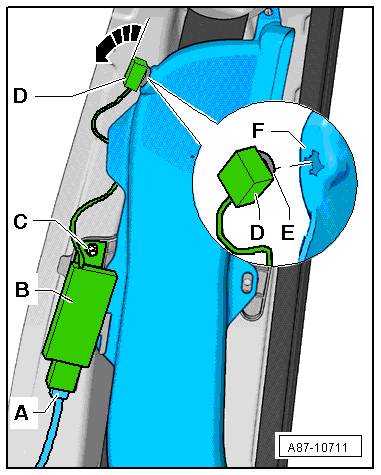

-- Release and disconnect the connector -A-.
-- Remove the bolt -C-.
-- Turn the ionizer -D- 90° in the direction of the -arrow- and remove it from the mount of air duct -F-.
