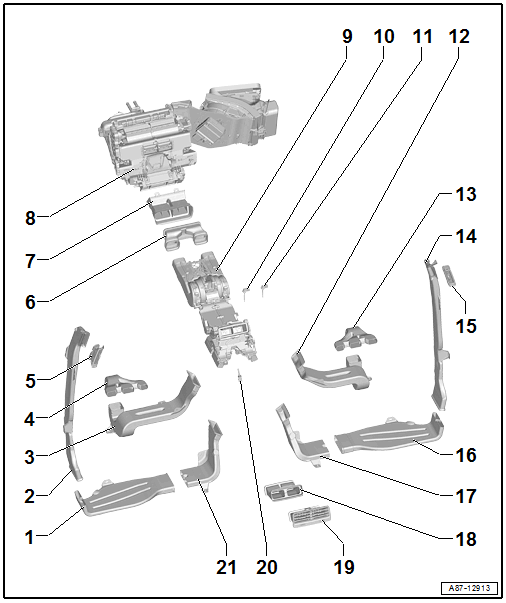

Air Ducts And Vent In Passenger Compartment Rear, Pr Number KH5/ 9AU/ 9AE
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Depending on vehicle equipment, there are different versions of the A/C system. Make sure to use the correct version and pay attention to the allocation of different components. Refer to Parts Information.
- To remove the rear air ducts, depending on the component location of the air duct and the vents, the B-pillar trim panels must be removed and the rear carpet must be carefully loosened and folded to the side. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING and CARPET, REMOVING AND INSTALLING .
- Removing and installing the vents and air ducts in the "B" pillars. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Air Duct to the Vent in the Left B-pillar
Removing and Installing:
- Loosen the rear carpet and fold it carefully to the side. Refer to CARPET, REMOVING AND INSTALLING .
- Remove the air duct in the left B-pillar AIR DUCTS AND VENT IN PASSENGER COMPARTMENT REAR, PR NUMBER KH5/ 9AU/ 9AE List Item:Air Duct in the Left B-Pillar
- Remove the expanding rivet
- Air Duct in the Left B-Pillar
- There are different versions. Refer to the Parts Information.
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING , additionally free up the wiring harness
- Air Guide to the Footwell Vent under the Left Seat
Removing and Installing:
- Remove the mount for the Data Bus on Board Diagnostic Interface -J533-.Refer to CONTROL MODULES .
- Remove the expanding rivet and free up the air duct
- Footwell Vent Under the Left Seat
- For removal, remove the left carpet. Refer to CARPET, REMOVING AND INSTALLING .
- Vent in the Left B-Pillar
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Rear Air Duct
- From the air duct (from the front heater and A/C unit) to the rear air distribution housing
- Q7 before product improvement: to remove, remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Q7 From Product Improvement and Q8: to remove, remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, PR NUMBER KH5/ 9AU/ 9AE .
- Rear Air Duct
- from the front heater and A/C unit (to the air duct) to the rear air distribution housing
- Q7 before product improvement: to remove, remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Q7 From Product Improvement and Q8: to remove, remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, PR NUMBER KH5/ 9AU/ 9AE .
- Front Heater and A/C Unit with Air Intake Housing
- Right-hand drive is a mirror image
- Different versions. Refer to OVERVIEW - HEATER AND A/C UNIT and the Parts Information.
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Air intake, air vents and air routing in the heater and A/C unit. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
- Rear Air Distribution Housing
- Component locations - rear adjustment motors. Refer to COMPONENT LOCATION OVERVIEW - REAR ADJUSTMENT MOTORS, PR NUMBER KH5/ 9AU/ 9AE .
- Air duct in the rear air distributor housing. Refer to AIR DUCT IN REAR AIR DISTRIBUTION HOUSING, PR NUMBER KH5/ 9AU/ 9AE .
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, PR NUMBER KH5/ 9AU/ 9AE .
- Left Rear Upper Body Vent Temperature Sensor -G635-
- Installed depending on the version
- Removing and Installing. Refer to Right Rear Upper Body Vent Temperature Sensor -G636- / Left Rear Upper Body Vent Temperature Sensor -G635-, EMOVING AND INSTALLING, PR NUMBER 9AU .
- Right Rear Upper Body Vent Temperature Sensor -G636-
- Installed depending on the version
- Removing and Installing. Refer to Right Rear Upper Body Vent Temperature Sensor -G636- / Left Rear Upper Body Vent Temperature Sensor -G635-, EMOVING AND INSTALLING, PR NUMBER 9AU .
- Air Guide to the Footwell Vent under the Right Seat
Removing and Installing:
- Remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
- Remove the expanding rivet and free up the air duct
- Footwell Vent under the Right Seat
- To remove, remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
- Air Duct in the Right B-Pillar
- There are different versions. Refer to the Parts Information.
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING , additionally free up the wiring harness
- Vent in the Right B-Pillar
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Air Duct to the Vent in the Right B-Pillar
Removing and Installing:
- Loosen the rear carpet and fold it carefully to the side. Refer to CARPET, REMOVING AND INSTALLING .
- Remove the air duct in the right B-pillar AIR DUCTS AND VENT IN PASSENGER COMPARTMENT REAR, PR NUMBER KH5/ 9AU/ 9AE List Item:Air Duct in the Right B-Pillar.
- Remove the expanding rivet
- Air Duct from the A/C Unit to the Vent in the Right B-Pillar
Removing and Installing:
- Loosen the rear carpet and fold it carefully to the side. Refer to CARPET, REMOVING AND INSTALLING .
- Remove the air duct to the vent in the right B-pillar AIR DUCTS AND VENT IN PASSENGER COMPARTMENT REAR, PR NUMBER KH5/ 9AU/ 9AE List Item:Air Duct to the Vent in the Right B-Pillar
- Air Duct
- From the rear air distribution housing to the rear center console vent
- To remove, remove the rear trim and air duct. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING
- Rear Center Console Vent
- There are different versions. Refer to the Parts Information.
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Rear Upper Body Vent Temperature Sensor -G537-
- Installed depending on the version
- Removing and Installing. Refer to Rear Upper Body Vent Temperature Sensor -G537-, EMOVING AND INSTALLING .
- Air Duct from the A/C Unit to the Vent in the left B-Pillar
Removing and Installing:
- Loosen the rear carpet and fold it carefully to the side. Refer to CARPET, REMOVING AND INSTALLING .
- Remove the air duct to the vent in the left B-pillar AIR DUCTS AND VENT IN PASSENGER COMPARTMENT REAR, PR NUMBER KH5/ 9AU/ 9AE List Item:Air Duct to the Vent in the Left B-pillar
