Debris Grille, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off (deactivate) the "parking air conditioner".Refer to Owner's Manual.
-- Switch off the ignition.
-- Remove the fresh air intake cover. Refer to FRESH AIR INTAKE COVER, REMOVING AND INSTALLING, VERSION 2 .
-- Move the Exterior Air Quality and Humidity Sensor -G935- / Air Quality Sensor -G238- with the Humidity Sensor in Fresh Air Intake Duct -G657- to the side (do not disconnect the connector). Refer to Exterior Air Quality and Humidity Sensor -G935- /Air Quality Sensor -G238- WITH THE Humidity Sensor in Fresh Air Intake Duct -G657-, EMOVING AND INSTALLING .

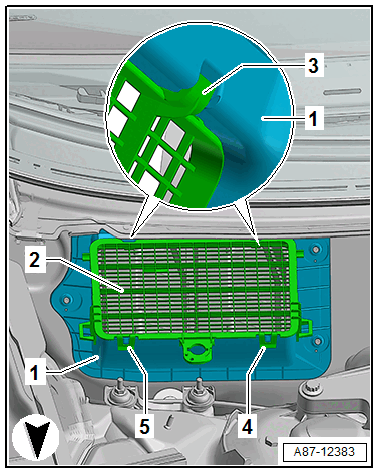

-- Release the tabs -4 and 5-.
-- Pivot the fresh air intake debris grille -2- inward and engage it on the air intake shroud -1-.
