Left Rear Air Distribution Motor -V593-, EMOVING AND INSTALLING: Installing
Install in the reverse order of removal while noting the following:
There is a risk of damaging the adjustment motor electronics when turning the mount.
- Turn the adjustment motor mount only when the wiring harness is connected.
- Install the mount carefully and slowly by hand.
- The actuator mount does not have a stop. It turns constantly if the actuator is activated. Therefore, it should not be activated when the actuator is removed.
- Check the connection between the actuator mount and the shaft; there must not be any play.

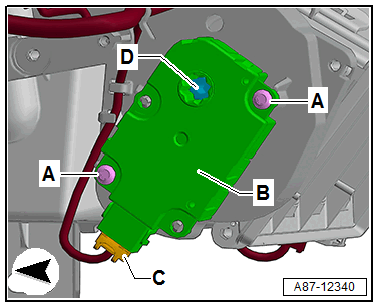

-- Check the shaft -A- and the mount -B- for the actuator -C-.They must be properly aligned so that they can be joined.
-- Attach the actuator mount -B- to the door shaft -A-.
-- Connect the connector -C-.
-- Tighten the bolts -A-.
-- Route the wiring harness to the connector -C- so that it cannot come in contact with any moving parts.
-- Perform a basic setting for the A/C system. Refer to GENERAL INFORMATION AND PROCEDURES FOR REMOVING AND INSTALLING ADJUSTMENT MOTORS .
Tightening Specification
