Terminal 30 Wire Junction 2 -TV22-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

On vehicles with 48 volt system (PR number VH2/VH3) the 48 V system must first be de-energized. Refer to 48V SYSTEM, DE-ENERGIZING .

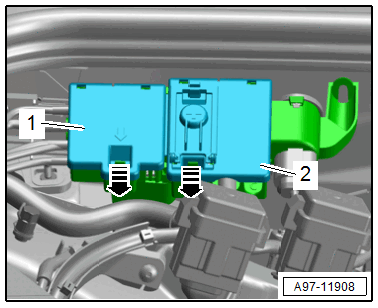

-- Release the retainers in direction of -arrows-.

-- Open the cover in the sequence -2 and 1-.

-- Remove the wires -2 to 5- and free them up.

Fig 1: Digital Sound System Control Module Connector End View (J525, T38, T18i, T2ca)

Courtesy of AUDI

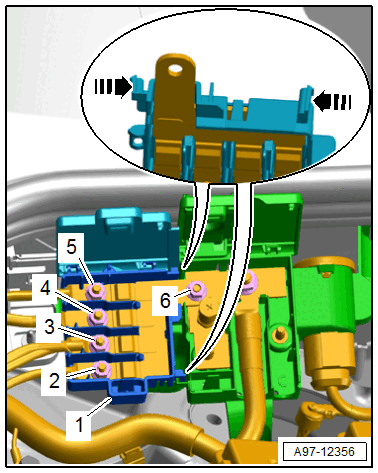

-- Remove the nut -6-.

-- Release the retainers in direction of -arrows- and remove the wire junction -1-.
