Terminal 30 Wire Junction -TV2-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- On vehicles with 48 volt system (PR number VH2/VH3) the 48 V system must first be de-energized. Refer to 48V SYSTEM, DE-ENERGIZING .
-- Remove the terminal 30 wire junction 2 and move to the side with the lines still connected. Refer to Terminal 30 Wire Junction 2 -TV22-, REMOVING AND INSTALLING .

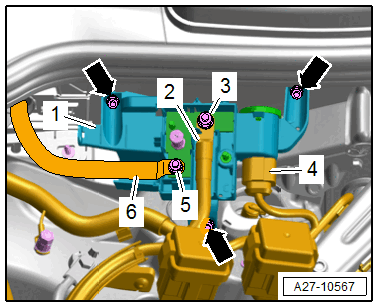

-- Disconnect the connector -4-.
-- Remove the nuts -3 and 5- and free up the wires -2 and 6-.
-- Remove the nuts -arrows-.
-- Remove the wire junction -1- from the threaded pins.
