Suppressor -C24-, REMOVING AND INSTALLING, 48V SYSTEM: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI
|

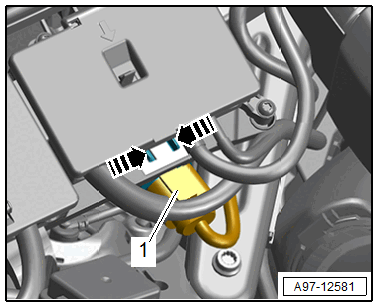

-- Release the catches in direction of -arrows- and remove the suppressor.
-- Disconnect the connector -1-.

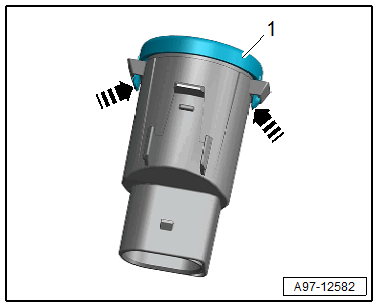

-- Release the retainers in direction of -arrows- and remove the cover -1-.
 Courtesy of AUDI
|

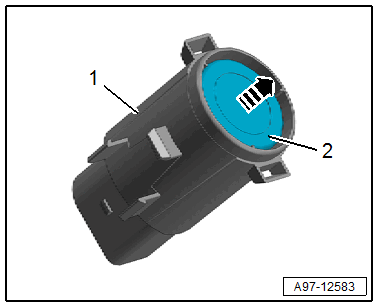

-- Push the suppressor -2- upward and out of the housing -1- from below in direction of -arrow- and remove it.
 Courtesy of AUDI
|
