Fuse Panel F -SF-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connectors -2 and 3-.

-- Free up the connector -1-.

-- Release the retainers in direction of -arrow-.

-- Lift the fuse panel F -4- and remove to the right.

-- Open the clip in the direction of -arrow- and remove the fuse panel -2- toward the rear from fuse panel F -1-.

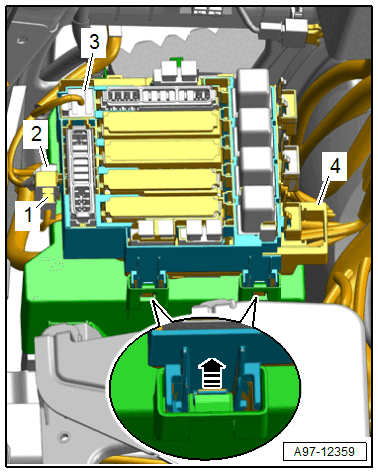

Fig 1: Fuse Panel

Courtesy of AUDI

-- Open the clip and remove the auxiliary fuse panel -2-.

Fig 2: Auxiliary Fuse Panel

Courtesy of AUDI

-- Release the clips in direction of -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Open the clips in direction of -arrows- and remove the relay panel -2- from the fuse panel F -1- to the rear.

Fig 3: Identifying Relay Panel And Connector Station

Courtesy of AUDI

-- Remove fuse panel F.
