Fuse Panel C -SC-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

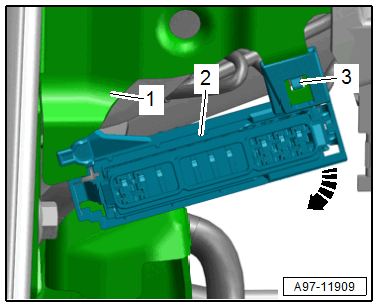

-- Open the clip -3- and remove fuse panel C -2- on the instrument panel central tube -1- -arrow-.
-- Release the tab in direction of -arrow-, push fuse panel -2- to the rear and disengage it from the fuse panel C -1-.
