Component Location Overview - Relay Panel, Fuse Panel, E-Boxes, Left FOOTWELL
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

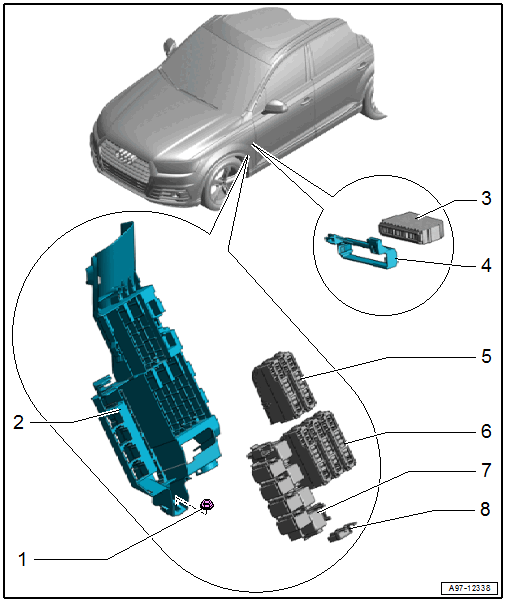

- Nut
- 3 Nm
- Quantity: 4
- Fuse Panel B -SB-
- Removing and Installing. Refer to Fuse Panel B -SB-, REMOVING AND INSTALLING .
- Fuse Panel C -SC-
- Removing and Installing. Refer to Fuse Panel C -SC-, REMOVING AND INSTALLING .
- Mount
- For the Fuse Panel C
- Removing and Installing. Refer to Fuse Panel C -SC-, REMOVING AND INSTALLING .
- Upper Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Lower Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Relay Mount
- Allocation. Refer to the appropriate Wiring Diagram.
- Auxiliary Fuse Panel
