Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, HIGH VERSION: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
The Data Bus on Board Diagnostic Interface -J533- is located under the left front seat.
-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Lift the front carpet at the transition to the rear carpet.
-- Market-specific version: loosen the bolt.

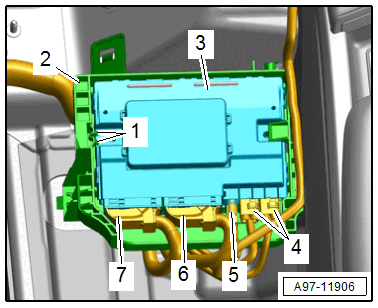

-- Release the retainers -1-.
-- Remove the data bus on board diagnostic interface -3- from the mount -2-.
-- Disconnect the connectors -6 and 7- and antenna wires -4 and 5-.
