Right Bulkhead Connector Station, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

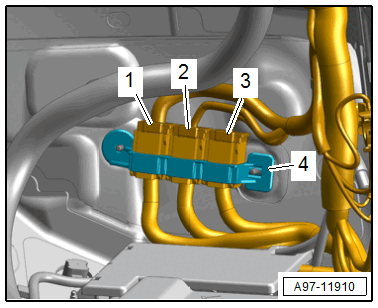

-- Disconnect the connectors -1, 2 and 3- by sliding the retainer toward the rear and pressing the release downward.
-- Remove the connector station -4- from the threaded pin.
-- Release the retainer -3- -arrow- and push the connector terminal -2- out of the bracket -1-.
