Seam Seal, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- The vehicle and the seal must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
- Do not stretch the seal when installing it.
- So that the seam seal does not loosen or slide, do not close the door for 30 minutes.
- If the door is replaced it must be oriented to the routing of the outer door seal on the opposite side.
-- Use the Adhesive Strip Remover:VAS 6349 to remove any adhesive residue on the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.

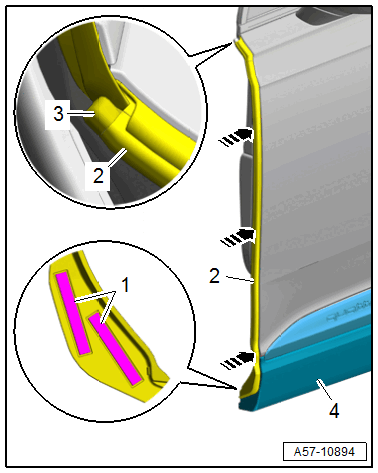

-- Bring the seam seal -2- on the joint to the window guide -3- in the installation position.
-- Remove the protective film from the adhesive strip -1- and attach the lower seam seal to the door cover -4-.
-- Press the seam seal on the door flange -arrows-.
- Vehicle resting time is a minimum 30 minutes with the doors open at room temperature.
