Overview - Door Seals

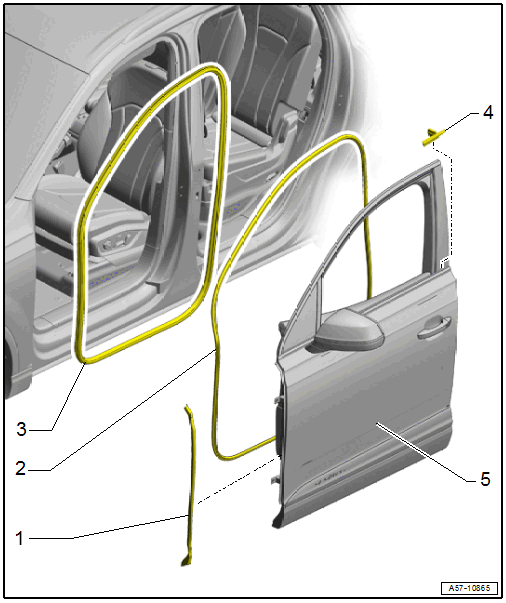

Fig 1: Exploded View Of Door Seals

Courtesy of AUDI

1. Gap Seal
   • Replace after removing
   • Removing and Installing. Refer to SEAM SEAL, REMOVING AND INSTALLING .
2. Outer Door Seal
   • Replace after removing
   • Installation position. Refer to Fig 3.
   • Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
3. Inner Door Seal
   • Removing and Installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
4. B-Pillar Seal
   • Installation position. Refer to Fig 2.
5. Door
   • Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .

B-pillar seal installation position

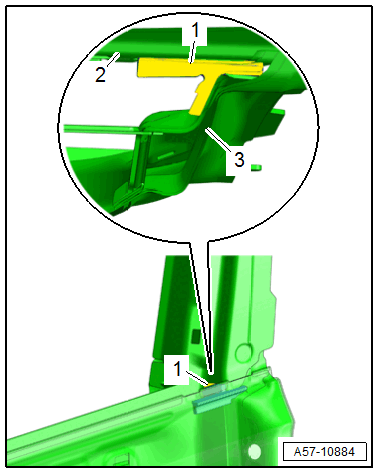

Fig 2: B-Pillar Seal Installation Position

Courtesy of AUDI

• The vehicle and the seal must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

-- Remove the protective film, bring the seal in the installation position and apply it:

1. Seal
2. Outer Door Panel
3. Inner Door Panel

Outer door seal installation position

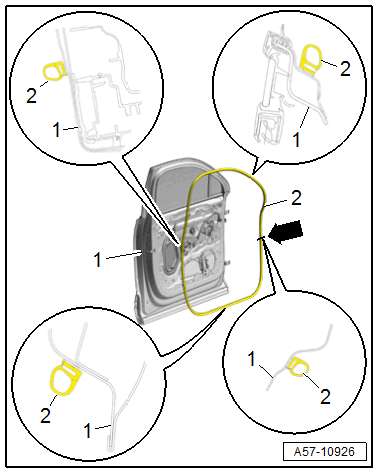

Fig 3: Outer Door Seal Installation Position

Courtesy of AUDI

1. Door Body
2. Outer Door Seal

-- Position the outer door seal with the vulcanized point -arrow- centered to the opening for the door arrester on the door body.
