Impact Member, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

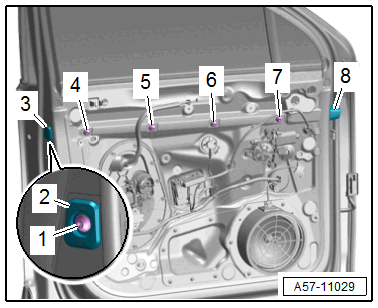

-- Install the impact member in the sequence: -1 through 5-.
| Step | |
|---|---|
| 1. | -- Insert the impact member into the door. |
| 2. | -- Tighten the screw -4- to 1.5 Nm. |
| 3. | -- Insert the member plate -2- and tighten the screw -1-. |
| 4. | -- Tighten the screws in the following sequence: -4, 5, 6 and 7-. |
| 5. | -- Press on the covers for the A-pillar -8- and B-pillar -3- until they audibly engage. |
