Trim Molding Cap, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lock cylinder/housing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .

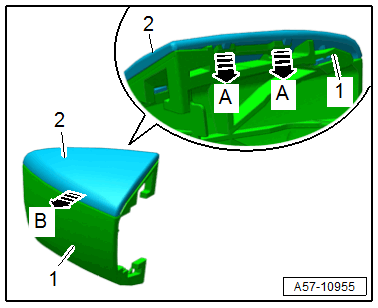

-- Release the retainers -A arrows-.

GWWA57-10955Courtesy of AUDI

-- Remove the trim molding -2- from the cap -1- -arrow B-.
