Mounting Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of damaging the operating cable by deforming it.

- Never sharply bend or kink the operating cable.

Special tools and workshop equipment required

Pry Lever:80-200

Fig 1: Identifying Pry Lever
Courtesy of AUDI

Removing

-- Move the door window into the "closed" position.

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Unclip the backing plates -1 and 2- for the door handle.

Fig 2: Identifying Exterior Door Handle Washer

Courtesy of AUDI

-- Equipped on some models: disengage the wire on the mounting bracket -arrow-.

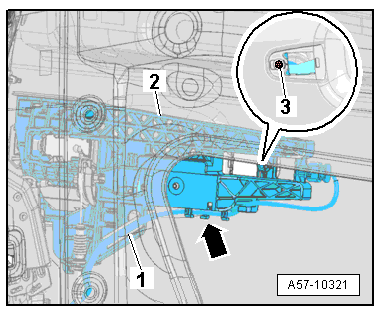

Fig 3: Electric Wire Spiral Clip, Bolt -3- & Mounting Bracket -2-

Courtesy of AUDI

-- Free up the spiral clip -1- for the wire using the Pry Lever:80 - 200 .

-- Remove the bolt -3-.

-- Disengage the mounting bracket -2- toward the rear and carefully to the opening for the door inner cover, at the same time pay attention to the operating cable.

-- Disengage the operating cable from the operating lever on the mounting bracket. Refer to EXTERIOR DOOR OPERATING CABLE, REMOVING AND INSTALLING .
