Inner Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

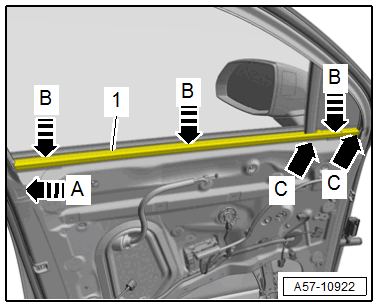

-- Place the window shaft strip -1- on the ridge to the fixed front door window and A-pillar -C arrows-.
-- Push the window shaft strip to the B-pillar to the stop -arrow A-.
-- Push the window shaft strip begging from the B-pillar completely on the door flange -B arrows-.
Further installation is performed in reverse order of the removal.
