Front Wheel Spoiler, Removing And Installing, Inner: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bolt -1-.

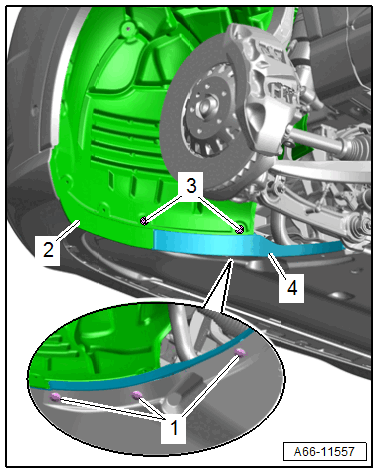

GWWA66-11557Courtesy of AUDI

-- Remove the screws -3- and the front section of the front wheel housing liner -2- at the bottom.

-- Remove the wheel spoiler -4-.
