Underbody Trim Panel, Removing And Installing, Side: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front underbody panel. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, FRONT .
-- Remove the tank underbody trim panel. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, TANK .

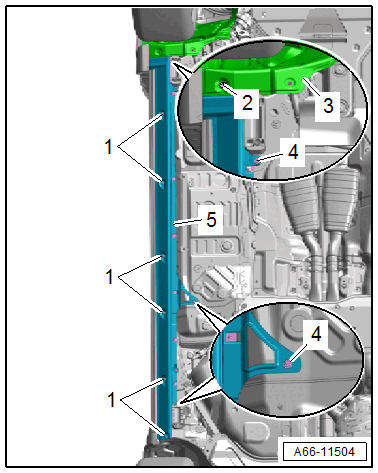

-- Remove the nuts -4- and bolts -1 and 2-.
-- Push the wheel housing liner -3- slightly to the side and remove the side underbody trim panel -5-.
