Towing Recognition Control Module -J345-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Vehicles with high-voltage system: remove the Subwoofer -R211-. Refer to LEFT FRONT TREBLE SPEAKER 2 -R220- /RIGHT FRONT TREBLE SPEAKER 2 -R221-, REMOVING AND INSTALLING .

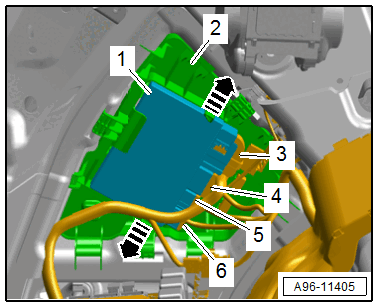

-- Release the retainers -arrows- and remove the towing recognition control module -1- from the frame -2-.
-- Disconnect the connectors -3 through 6-.
