Side Spoiler, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

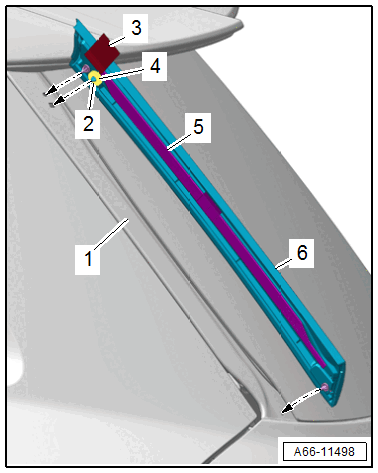

-- Check the foam seal -4- for damage.

Courtesy of AUDI

• The vehicle and the spoiler must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Clean the adhesive surfaces with Cleaning Solution and let it dry.

-- Fold back the ends of the protective film, or attach a pulling aid to the protective film -3-.

-- Align the spoiler -6- with an alignment pin -2- on the rear lid -1-.

-- Remove the protective film from the pulling aids and from the adhesive tape -5-.

-- Push on the spoiler until it engages audibly on the rear lid.

-- Push the entire length of the spoiler on using the Roller :T40400  .

• Resting time approximately 30 minutes at room temperature
