Roof Railing, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the head curtain airbag igniter from the body. The head curtain airbag remains installed. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

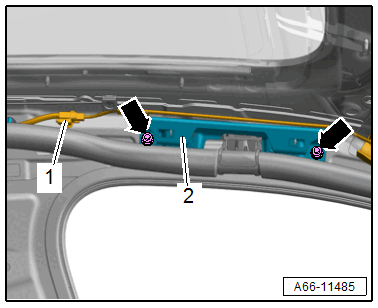

-- Disconnect the connector -1-.

Courtesy of AUDI

-- Remove the nuts -arrows- and move the bracket -2- to the side.

-- Remove the nuts -1 to 5-

Fig 1: Roof Railing - Tightening Sequence

Courtesy of AUDI

-- Remove the roof railing upward.
