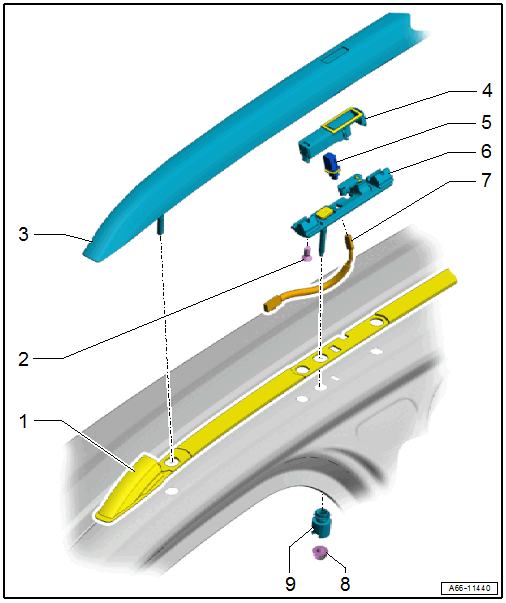

Overview - Roof Railing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Bolt
- Quantity: 2
- 8 Nm
- Roof Railing
- Removing and Installing. Refer to ROOF RAILING, REMOVING AND INSTALLING .
- Housing Upper Section
- Roof Rack Recognition Sensor - G625-
- Housing Lower Section
- Wire
- Nut
- Quantity: 4
- Insert with locking fluid. Refer to the appropriate Electronic Parts Information.
- Tightening specification and sequence. Refer to Fig 2.
- Lifter
- Quantity: 4
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Install with locking compound. Refer to the appropriate Electronic Parts Information for the locking compound.
- 0.5 Nm
Roof Railing - Tightening Specification and Sequence
-- Tighten the nuts to 10 Nm in the sequence -2, 3, 4, 5 and 1-.
