Dimensions - Side Name Badges And Emblems

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

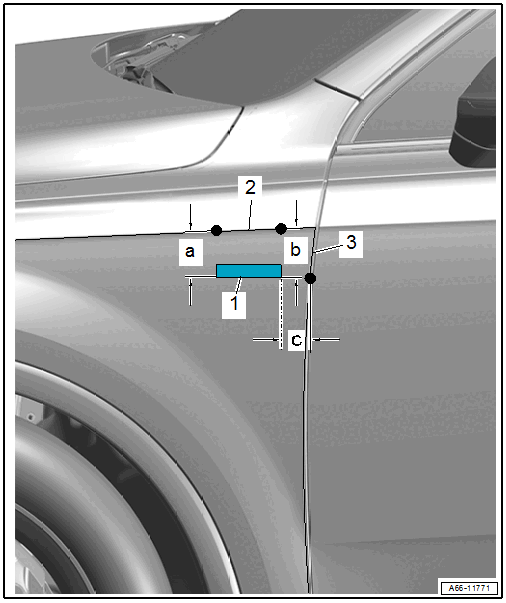

GWWA66-11771Courtesy of AUDI
  1. Type/Emblem
    • S-line
    • e-tron
      • Dimension -a- = 64.8 mm
      • Dimension -b- = 65.5 mm
      • Dimension -c- = 52 mm
    • V8 T
      • Dimension -a- = 69.5 mm
      • Dimension -c- = 47 mm
  2. Reference Edge in Fender
  3. Rear Edge on Fender
