Wheel Housing Extension, Removing And Installing, Front: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

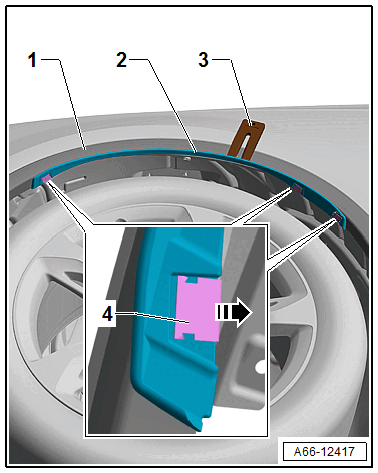

-- Remove the clips -4- -arrow-.

GWWA66-12417Courtesy of AUDI

-- Carefully warm the wheel housing extension -2- using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

-- Carefully pry out the wheel housing extension -2- using the Wedge : T10383/1  -3- from the wheel arch trim -1-.
