Trim Molding, Removing And Installing, Engine Compartment Lid: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

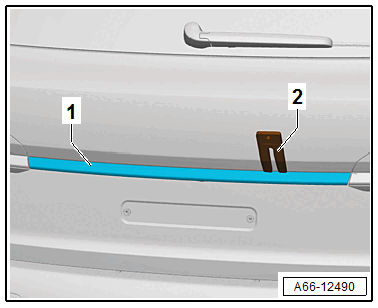

-- Carefully warm up the trim molding -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

GWWA66-12490Courtesy of AUDI

-- Carefully pry out the trim molding -1- using the Wedge :T10383/1  -2- from the engine compartment lid.
