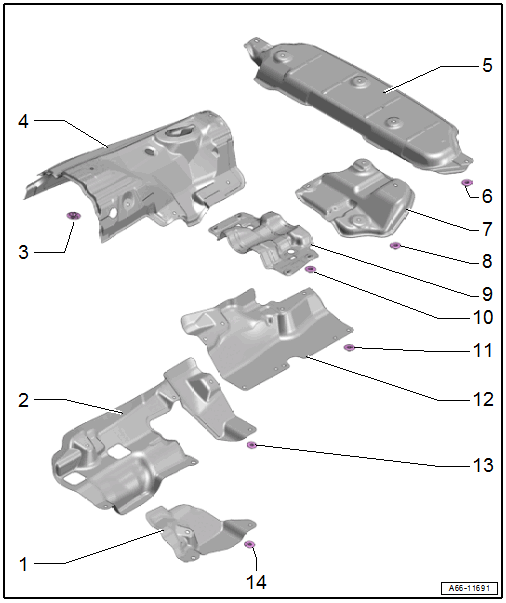

Overview - Rear Heat Shield
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield
- For the front tunnel brace
- Market-Specific Version
- Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
- Heat Shield
- For the front of the tunnel
- Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .
- Nut
- 2.5 Nm
- Heat Shield
- For the transmission tunnel
- Removing and Installing. Refer to TRANSMISSION TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the rear muffler
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
- Nut
- Quantity: 5
- 2.5 Nm
- Heat Shield
- For the center of the exhaust system
- Removing and Installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING .
- Nut
- Quantity: 4
- 2.5 Nm
- Heat Shield
- For the driveshaft
- Removing and Installing. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
- Nut
- Quantity: 4
- 2.5 Nm
- Nut
- 2.5 Nm
- Heat Shield
- For the tunnel rear
- Removing and Installing. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 2.5 Nm
- Nut/Bolt
- 2.5 Nm
