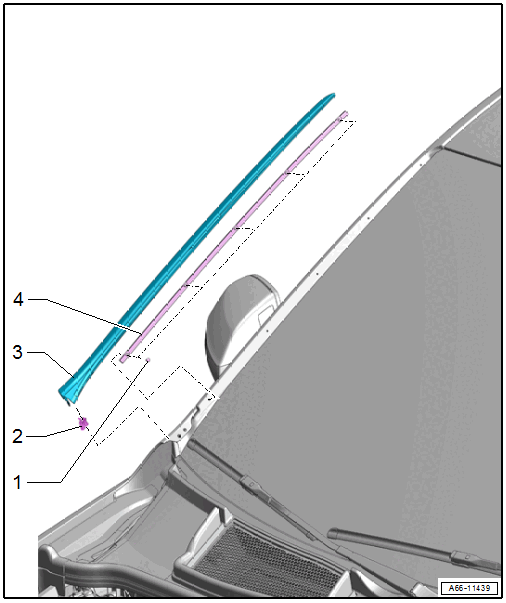

Overview - Drip Rail
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Pop Rivet
- Quantity: 5
- There must not be any burrs on the rivet head when riveting
- Clip
- Installation position. Refer to Fig 2.
- Drip Rail
- Removing and Installing. Refer to DRIP RAIL, REMOVING AND INSTALLING .
- Clamping Strip
- Removing and Installing. Refer to DRIP RAIL CLAMPING STRIP, REMOVING AND INSTALLING .

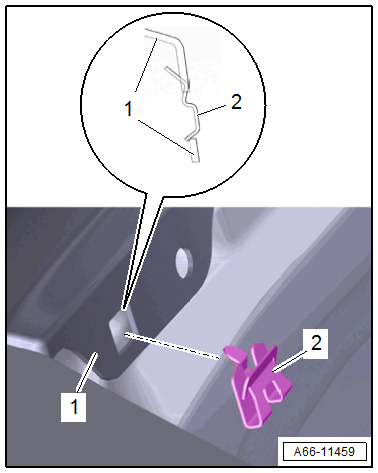

Clip Installation Position
-- Engage the clip -2- at the fender -1-.
