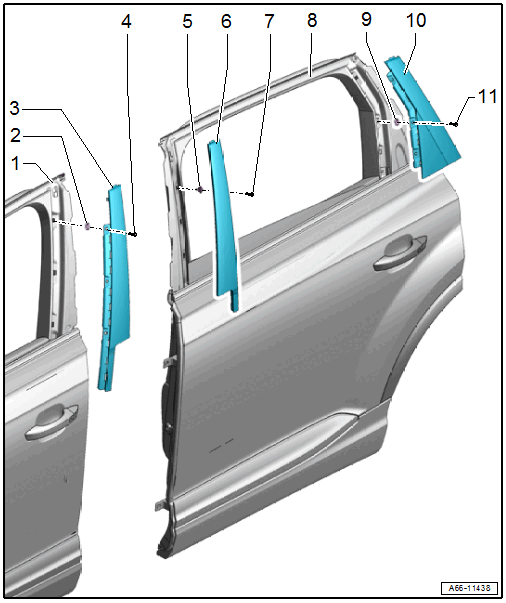

Overview - B-Pillar Trim
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Door
- Clip Nut
- Quantity: 3
- Front Door B-Pillar Trim
- Removing and Installing. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT .
- Bolt
- Quantity: 3
- 2.5 Nm
- Clip Nut
- Quantity: 3
- Rear Door B-Pillar Trim
- Removing and Installing. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR .
- Bolt
- Quantity: 3
- 2.5 Nm
- Rear Door
- Clip Nut
- Overview. Refer to OVERVIEW - C-PILLAR TRIM .
- Door C-Pillar Trim
- Overview. Refer to OVERVIEW - C-PILLAR TRIM .
- Bolt
- Overview. Refer to OVERVIEW - C-PILLAR TRIM .
