Length Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

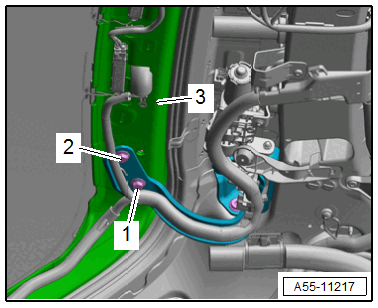

-- Loosen bolts -1 and 2-.
-- Adjust the rear lid -3- lengthwise.
-- Tighten the bolts.
Tightening Specifications
- Refer to OVERVIEW - REAR LID
