Height Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

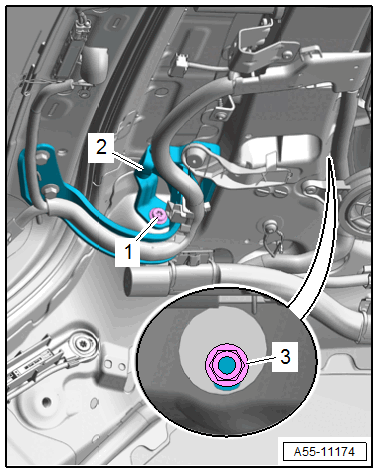

-- Loosen the bolt -1- and the nut -3-.
-- Adjust the height of the rear lid at the hinge -2-.
-- Tighten the bolt and nut.
Tightening Specifications
- Refer to OVERVIEW - REAR LID
