Adjustment Dimensions

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

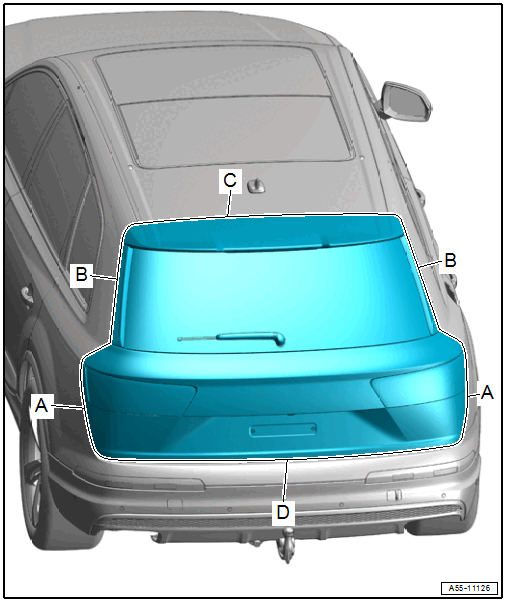

A - Rear Lid to Side Panel Bottom
- Gap dimension = 4.0 mm
B - Rear Lid to Top of Side Panel
- Gap dimension = 4.0 mm
C - Rear Lid to Roof
- Gap dimension = 4.5 mm
D - Rear Lid to Rear Lid End
- Gap dimension = 4.0 mm
