Rear Lid Seal, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

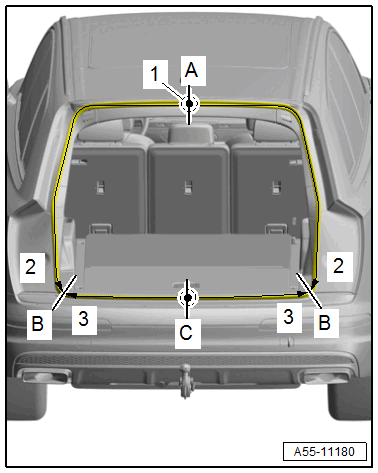

-- Install the rear lid seal on the body flange in the sequence: -1, 2 and 3-.
-- Align the mark -A- on the rear lid seal to the center roof frame seal hole and attach.
-- Attach the left and right rear lid seal downward to -item C-.
-- Align the rear lid seal with the butt joint -A- to the striker and attach.
-- Attach the left and right rear lid seal upward through -item B-.
-- Press on the entire length of the rear lid seal.
