Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

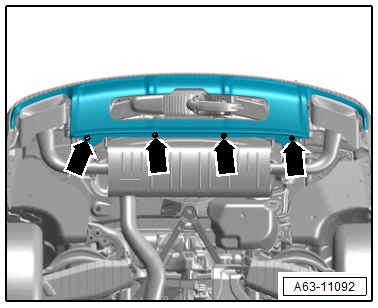

-- Remove the bolts -arrows- on the lower section of the bumper cover.

Courtesy of AUDI

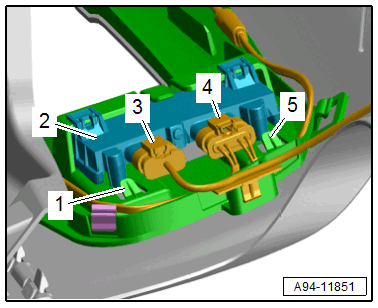

-- Disconnect the connectors -3 and 4-.

Courtesy of AUDI

-- Release the catches -1 and 5-.

-- Remove the control module -2- from the mount.
