Rear Lid Control Module -J605-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the roof end strip. Refer to ROOF END STRIP, REMOVING AND INSTALLING .

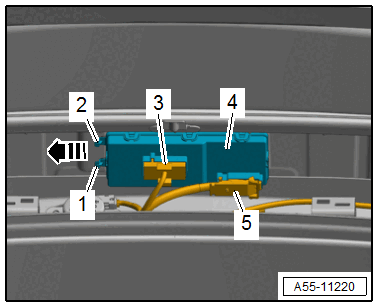

-- Disconnect the connectors -3 and 5-.
-- Release the catches -1 and 2- and at the same time push the control module -4- to the left side -arrow-. Doing so disengages the brackets from the guides.
-- Remove the Rear Lid Control Module -J605-.
