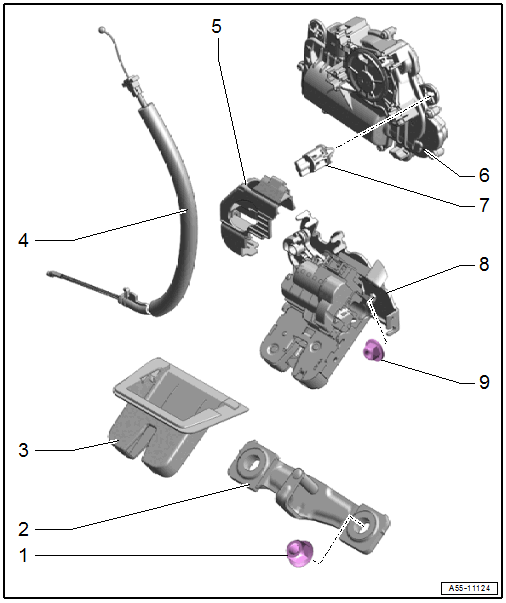

Overview - Rear Lid Release
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Quantity: 2
- 21 Nm
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
- Anti-Theft Protection
- For the latch
- Rear Lid Closing Assist Motor -V382-
- Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING .
- Locking Element
- For the closing assist
- Latch
- Rear Lid Lock Unit -VX25-
- With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 21 Nm
