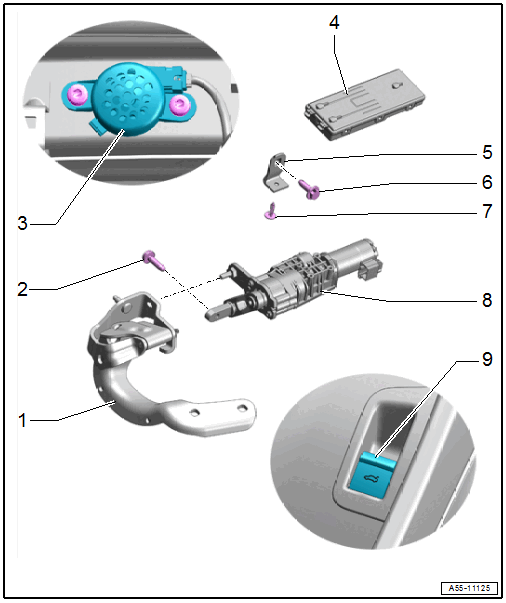

Overview - Power Rear Lid Opener
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Bolt
- Replace after removing
- 20 Nm + 90°
- Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Bracket
- Must not be adjusted
- Bolt
- 21 Nm
- Bolt
- 6 Nm
- Rear Lid Motor
- On the left: Rear Lid Motor 1 -V444- ; on the right: Rear Lid Motor 2 -V445-
- Removing and Installing. Refer to Rear Lid Motor 1 -V444- AND Rear Lid Motor 2 -V445-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Rear Lid Motor 1 -V444- AND Rear Lid Motor 2 -V445- .
- Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to REAR LID REMOTE RELEASE BUTTON -E233-, REMOVING AND INSTALLING .
