Closing Assist Release Cable, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid lower trim panel and the latch cover. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

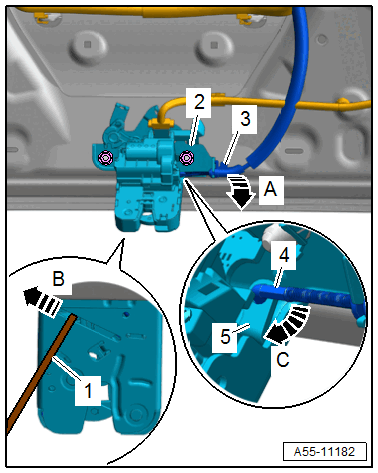

-- Turn the operating cable on the lever -3- 90° in the -direction of arrow A- and remove it from the cable bracket -2-.
-- Using a screwdriver -1-, secure the operating lever -5- on the opposite side -arrow B-.
-- Disengage the cable nipple -4- on the operating lever -arrow C-.

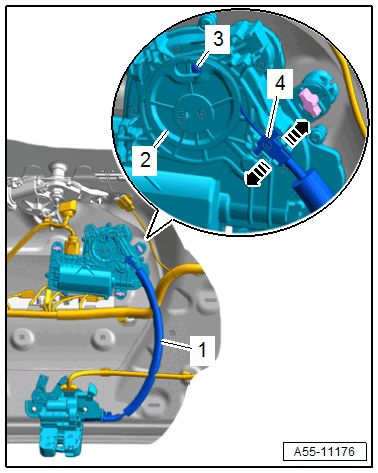

-- Disengage the cable bracket -4- on the Rear Lid Closing Assist Motor - V382- to do so release the catches -arrows-.
-- Disengage the cable nipple -3- from the operating cable -2-.
-- Remove the cable -1-.
