Latch Release Lever Release Cable, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

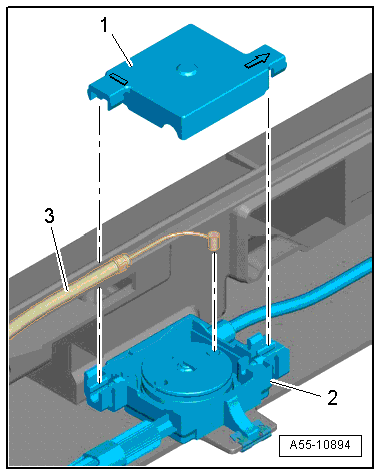

-- Engage the release cable nipple -3- in the coupling roller -2- and push the release cable in the support bracket.
-- Position the housing cover -1- so that the printed arrow points toward the free coupling connection.
-- To release the latches evenly, adjust the release cable at the thumbwheel.
