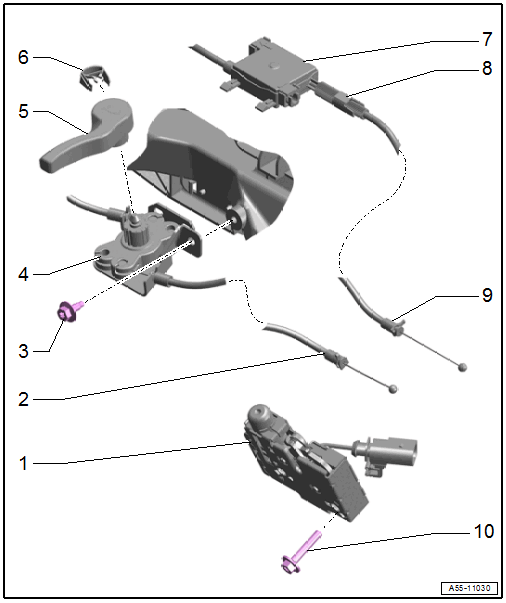

Overview - Release on Latch
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Release Cable
- For the hook release lever
- Removing and Installing. Refer to MOUNTING BRACKET WITH HOOK OPERATING LEVER RELEASE CABLE, REMOVING AND INSTALLING .
- Bolt
Vehicles without radiator shutter
- Quantity: 2
- 8 Nm
Vehicles with radiator shutter
- Quantity: 3
- 8 Nm
- Mounting Bracket with Release Cable
- For the hook release lever
- Removing and Installing. Refer to MOUNTING BRACKET WITH HOOK OPERATING LEVER RELEASE CABLE, REMOVING AND INSTALLING .
- Hook Release Lever
- Removing and Installing. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
- Clip
- For the release lever
- Coupling with Release Cables
- For the latches
- Removing and Installing. Refer to COUPLING WITH LATCH RELEASE CABLES, REMOVING AND INSTALLING .
- Adjusting Thumbwheel
- For the release cable
- For adjusting the trigger point for the latches
- Release Cable
- For releasing the latches
- Removing and Installing. Refer to COUPLING WITH LATCH RELEASE CABLES, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 12 Nm
