Mounting Bracket With Hook Operating Lever Release Cable, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
-- Remove the latch and disengage the mounting bracket release cable. Refer to LATCH, REMOVING AND INSTALLING .

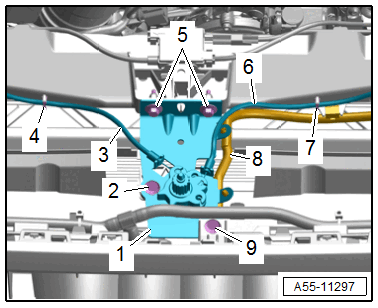

-- Free up the wiring harness -8-.
-- Pry out the clips -4 and 7-.
-- Remove the bolts -5 and 9-.
-- Versions with radiator shutter: remove the bolt -2-.
-- Remove the mounting bracket -1- and free up the release cables -3 and 6-.
