Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

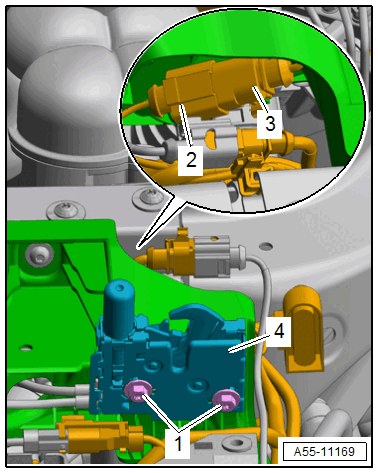

-- Disconnect the connector -2-.
-- Free up the connector -3-.
-- Remove the bolts -1-.
-- Remove the latch -4- until both the cables are visible.

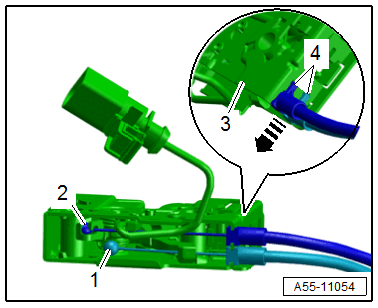

-- Release the catches -4- and remove the cable bracket from the mount -3- -arrow-.
-- Remove the cable nipples -1 and 2- from the release lever on the latch.
-- Remove the latch.
