Latch Release Lever Mounting Bracket, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the latch release lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

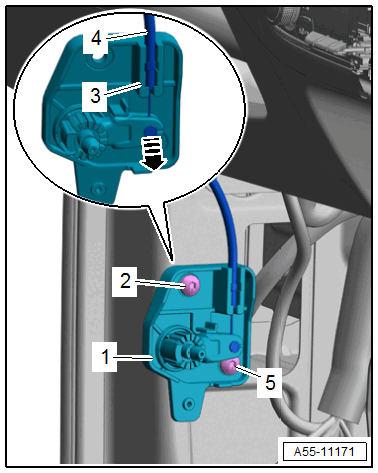

-- Remove the bolts -2 and 5-.
-- Remove the mounting bracket -1-.
-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -arrow-.
